Floor Standing Cabinets

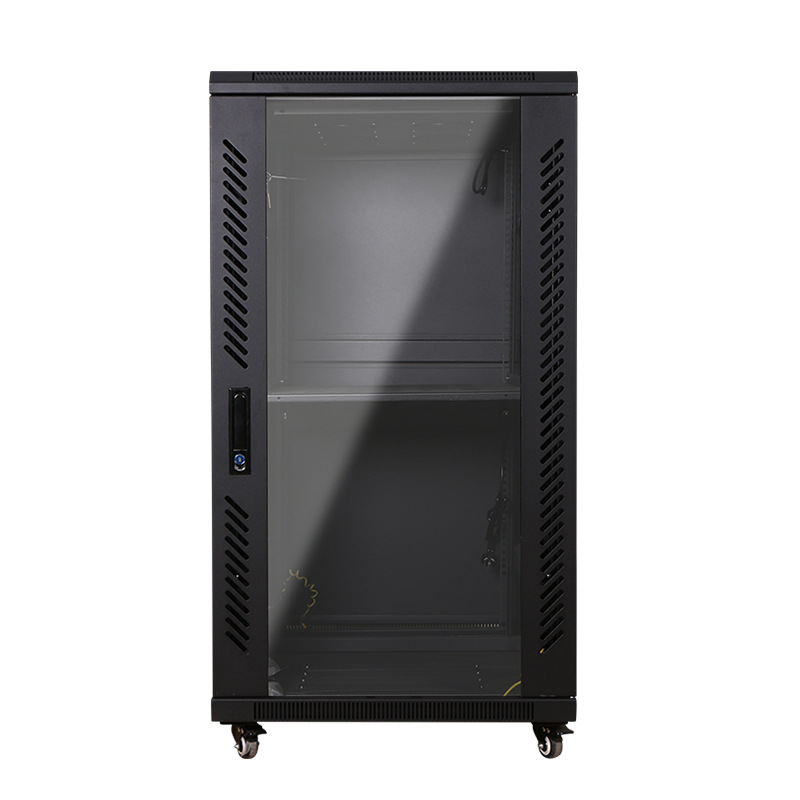

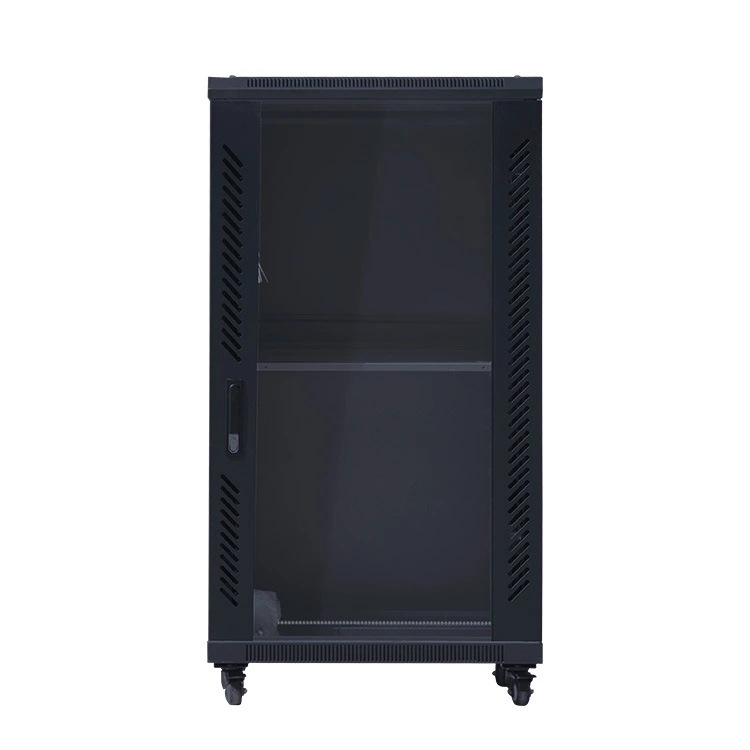

27U Floor Standing Cabinet
19-inch floor standing network cabinet with tempered glass front door, 1.4m height ideal for medium server rooms and enterprise network deployments.
Available Depths
600mm
Standard
Model: MA-2760
800mm
Deep
Model: MA-2780
1000mm
Extra Deep
Model: MA-2710
Specifications
Rack Units:27U
Standard:19-inch
Width:600mm
Depth:600 / 800 / 1000mm
Height:1400mm (1.4m)
Load Capacity:800KG
Material:SPCC Cold Rolled Steel
Body Thickness:1.2mm
Upright Thickness:2.0mm
Front Door:Tempered Glass
Surface Finish:Powder Coating
Protection:IP20
Color Options:Black / Gray
Installation:Floor Standing
Dimensions & Weight
| Model | Dimensions (W×D×H) | Weight |
|---|---|---|
| MA-2760 | 600 × 600 × 1400 mm | 55 KG |
| MA-2780 | 600 × 800 × 1400 mm | 65 KG |
| MA-2710 | 600 × 1000 × 1400 mm | 75 KG |
Key Features
- SPCC cold rolled steel, upright 2.0mm, body 1.2mm
- Tempered glass front door with lock & keys
- Removable side panels with quick-release latches

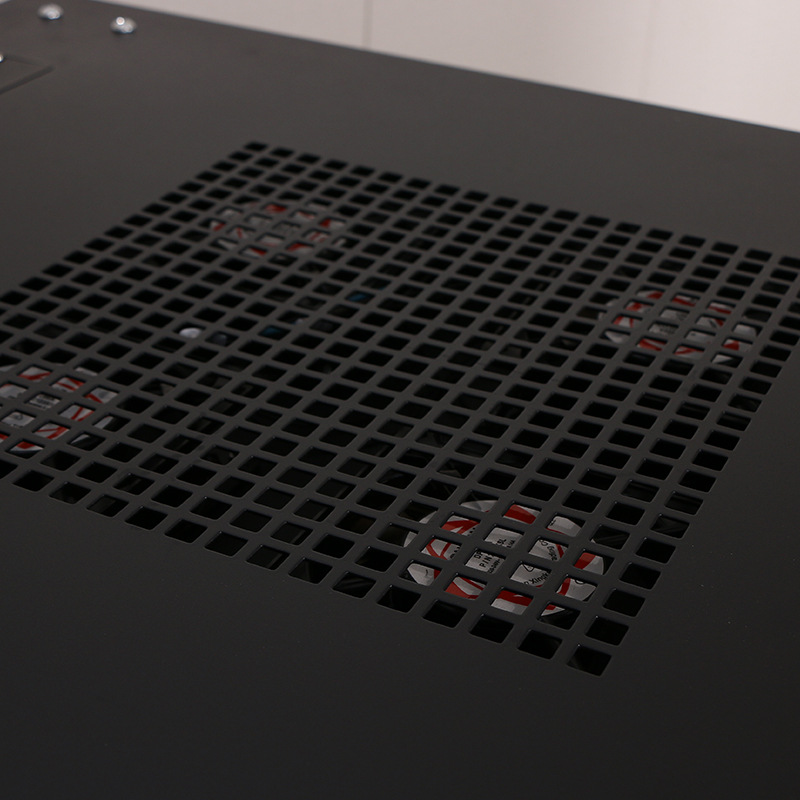

- Top-mounted cooling fans (2 fans included)
- Adjustable mounting rails with U-number markings
- 4 heavy-duty casters with brakes for easy mobility
- 800KG static load capacity
Standard Accessories
4 × Upright posts (2.0mm)
40 × M6 screw & nut sets

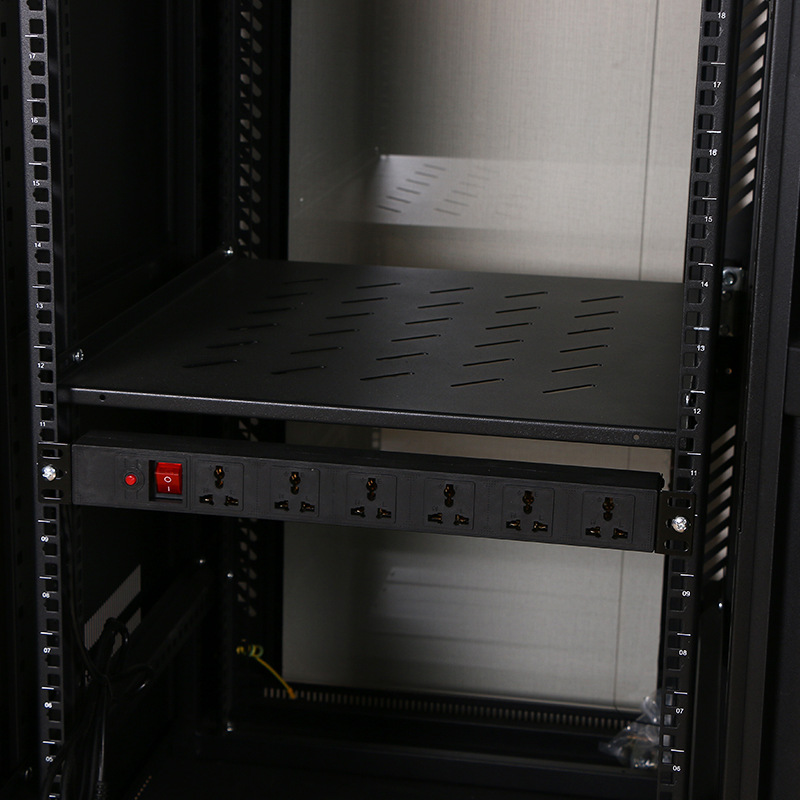

1 × Fixed shelf/tray
2 × Cooling fans
1 × 8-port PDU
4 × Casters + 4 × Support feet
Certifications
CE CertifiedRoHS Compliant
Contact us for pricing, specifications, or OEM requirements.
