Wall Mount Cabinets

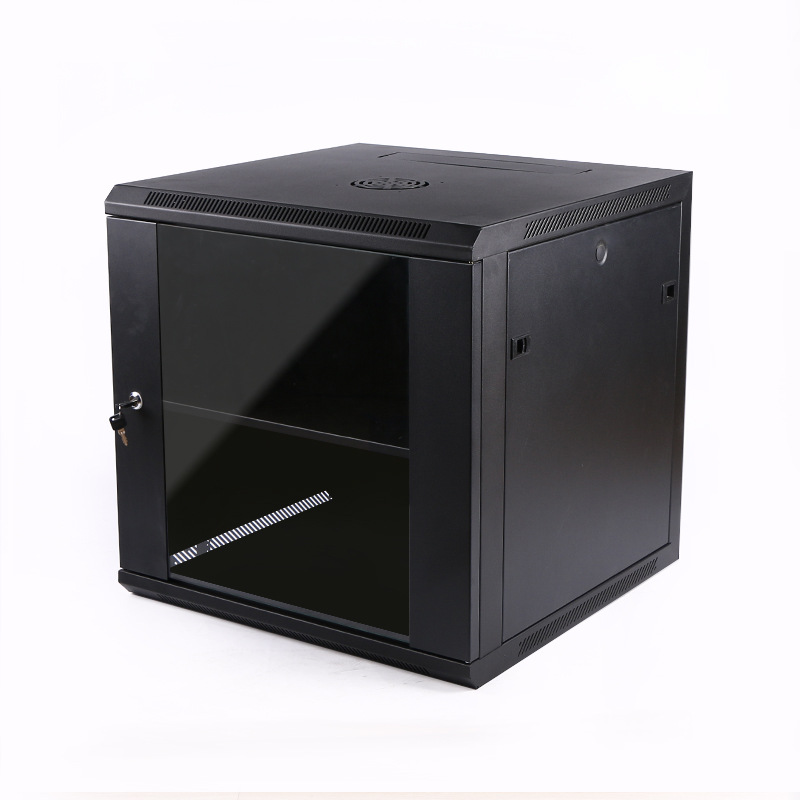

12U Wall Mount Cabinet

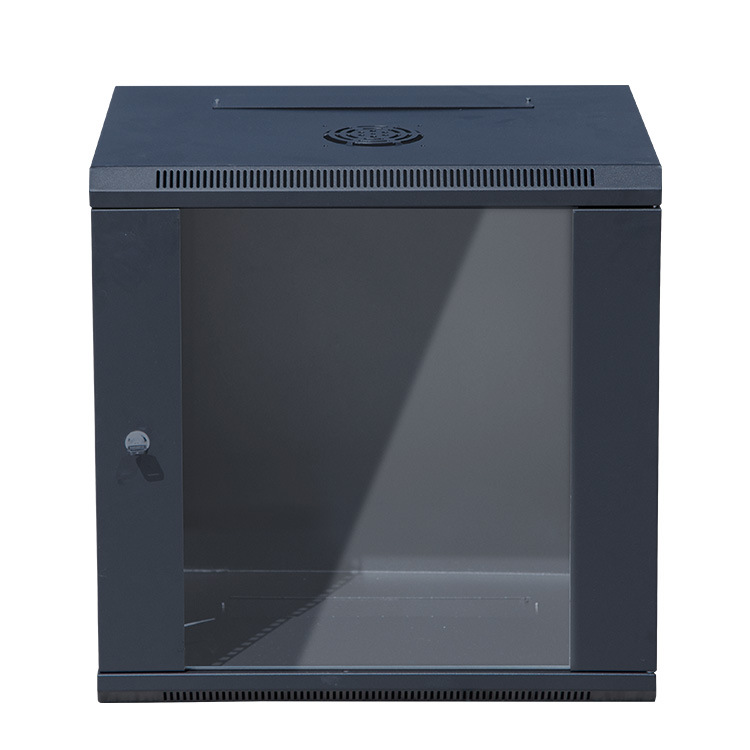

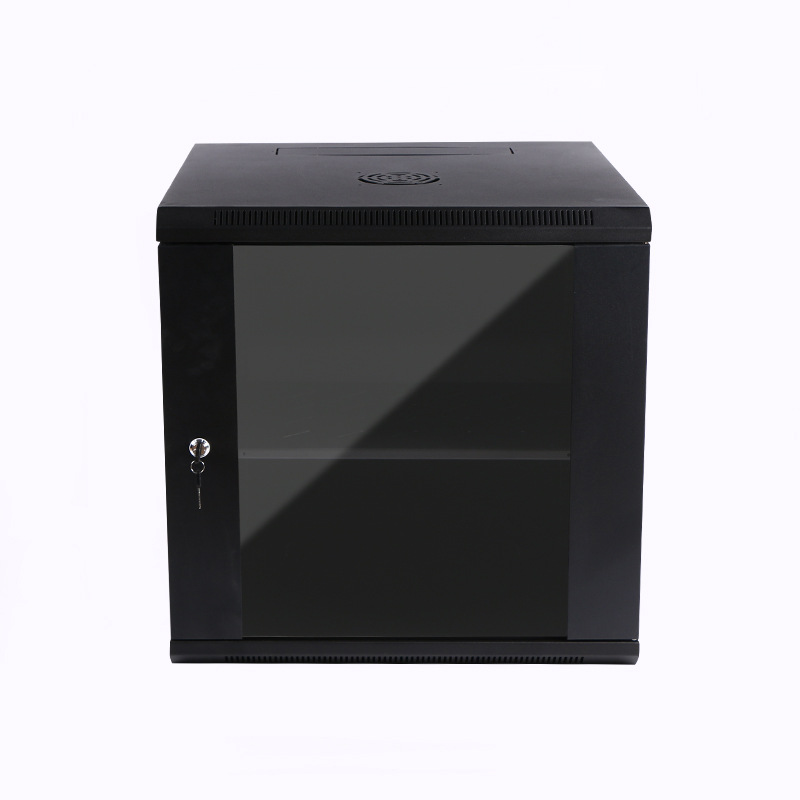

19-inch wall-mount network cabinet with tempered glass front door, ideal for medium-sized network installations and surveillance systems.
Available Depths
450mm
Shallow Type
Model: FS-6412
600mm
Standard Type
Model: FS-6612
Specifications
Rack Units:12U
Standard:19-inch
Width:600mm
Depth:450mm / 600mm
Height:600mm
Load Capacity:60KG
Material:SPCC Cold Rolled Steel
Body Thickness:1.0mm
Upright Thickness:1.2mm
Front Door:4mm Tempered Glass
Surface Finish:Powder Coating
Protection:IP20
Color Options:Black / Gray
Installation:Wall Mount
Dimensions & Weight
| Model | Dimensions (W×D×H) | Packing Size | Weight |
|---|---|---|---|
| FS-6412 | 600 × 450 × 600 mm | 620 × 470 × 620 mm | 20 KG |
| FS-6612 | 600 × 600 × 600 mm | 620 × 620 × 620 mm | 22 KG |
Key Features
- SPCC cold rolled steel, upright & wall plate 1.2mm, body 1.0mm
- 4mm tempered glass front door with lock & keys
- Removable side panels with quick-release latches
- Dual top-mounted cooling fans (optional)
- Adjustable front & rear mounting rails with U-number markings

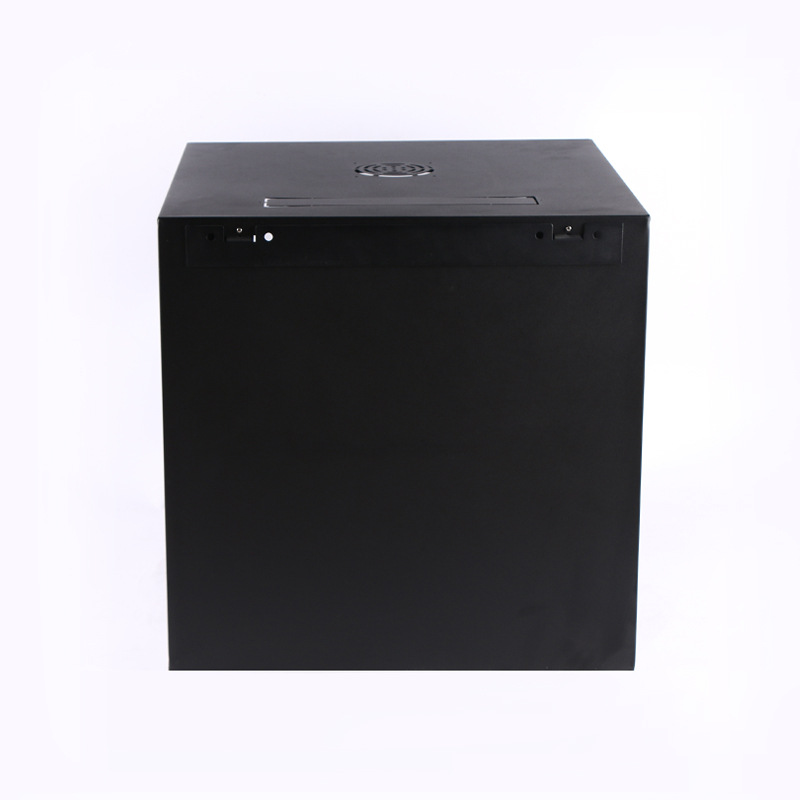

- Integrated wall mounting plate for easy installation
- Top & bottom cable entry with cover plate
- 60KG static load capacity
Standard Accessories
4 × Upright posts (1.2mm)
20 × M6×12 screw & nut sets
4 × Horizontal mounting brackets
1 × Fixed shelf/tray
1 × Wall mounting plate
Optional Accessories
Cooling fan kit
Additional shelves
1U PDU power strip
Side panel locks
Typical Applications
Network DistributionSurveillance SystemsServer RoomsOffice NetworksTelecom RoomsAV Systems
Certifications
CE CertifiedRoHS Compliant
Contact us for pricing, specifications, or OEM requirements.
