Wall Mount Cabinets

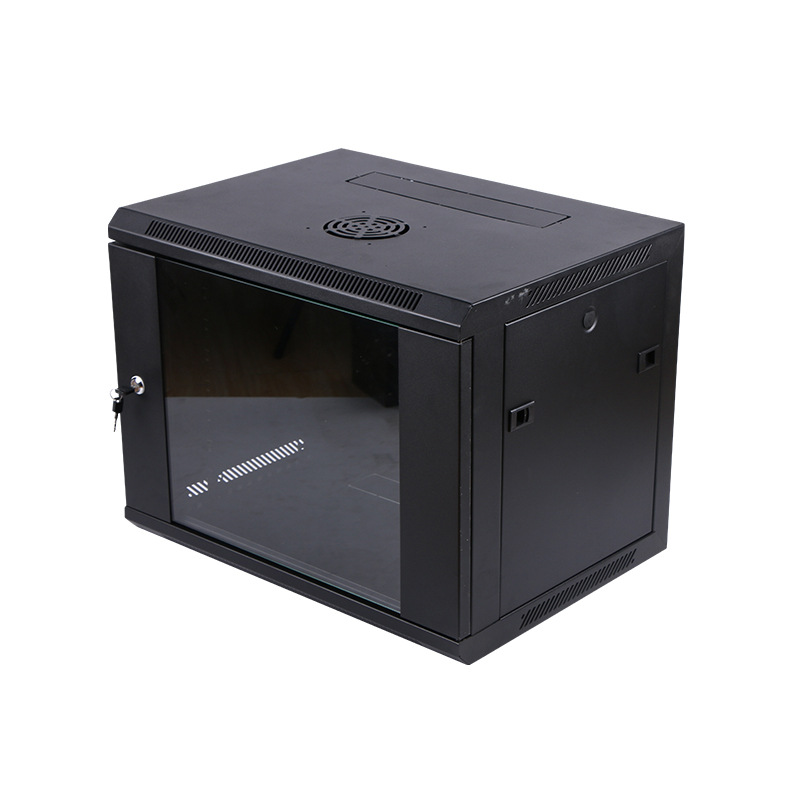

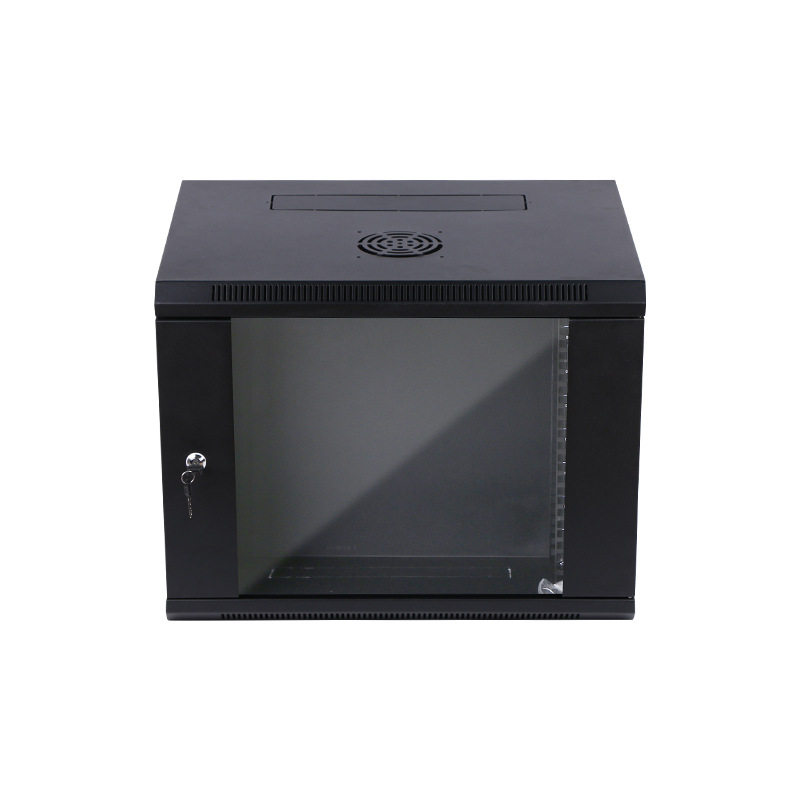

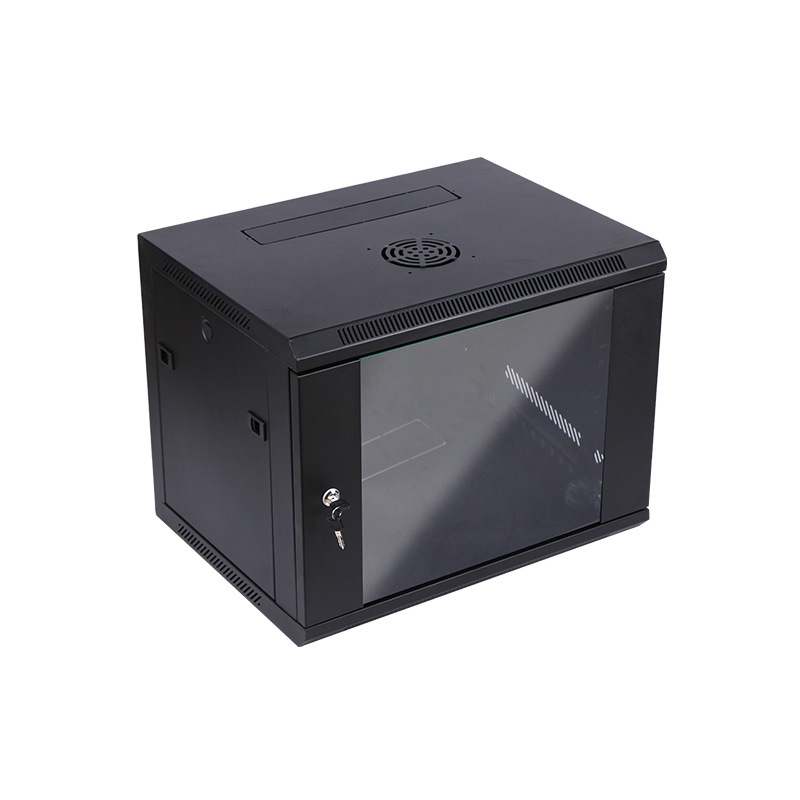

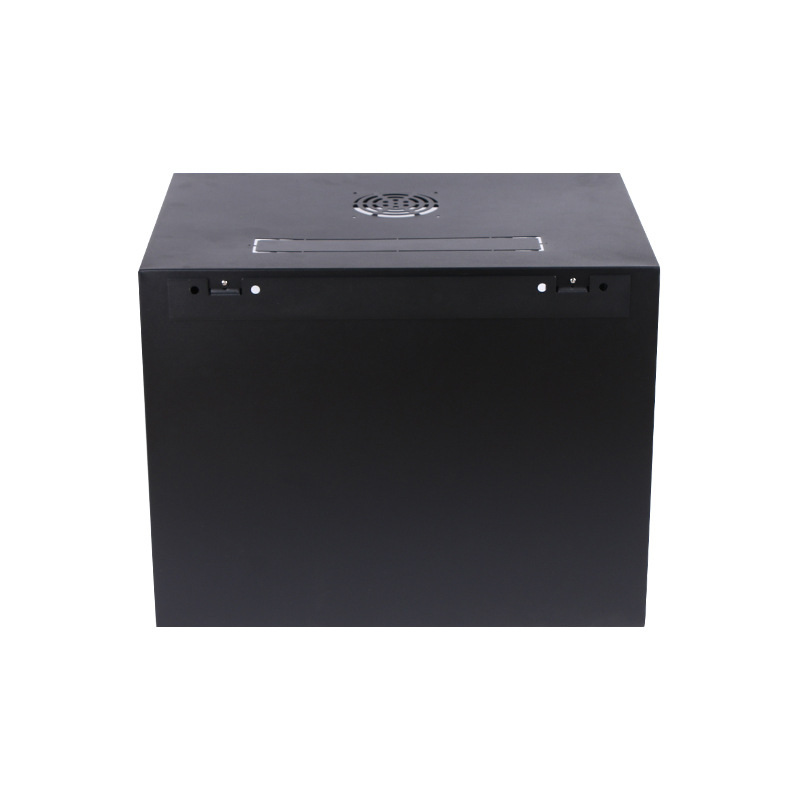

9U Wall Mount Cabinet
19-inch wall-mount network cabinet with tempered glass front door, ideal for network distribution and surveillance installations.
Available Depths
450mm
Shallow Type
Model: FS-6409
600mm
Standard Type
Model: FS-6609
Specifications
Rack Units:9U
Standard:19-inch
Width:600mm
Depth:450mm / 600mm
Height:465mm
Load Capacity:60KG
Material:SPCC Cold Rolled Steel
Body Thickness:1.0mm
Upright Thickness:1.2mm
Front Door:4mm Tempered Glass
Surface Finish:Powder Coating
Protection:IP20
Color Options:Black / Gray
Installation:Wall Mount
Dimensions & Weight
| Model | Dimensions (W×D×H) | Packing Size | Weight |
|---|---|---|---|
| FS-6409 | 600 × 450 × 465 mm | 620 × 470 × 485 mm | 17 KG |
| FS-6609 | 600 × 600 × 465 mm | 620 × 620 × 485 mm | 19 KG |
Key Features
- SPCC cold rolled steel, upright & wall plate 1.2mm, body 1.0mm
- 4mm tempered glass front door with lock & keys
- Removable side panels with quick-release latches
- Dual top-mounted cooling fans (optional)
- Adjustable front & rear mounting rails with U-number markings
- Integrated wall mounting plate for easy installation
- Top & bottom cable entry with cover plate
- 60KG static load capacity
Standard Accessories
4 × Upright posts (1.2mm)
20 × M6×12 screw & nut sets
4 × Horizontal mounting brackets
1 × Wall mounting plate
Optional Accessories
Cooling fan kit
Fixed shelf / vented tray
1U PDU power strip
Side panel locks
Typical Applications
Network DistributionSurveillance SystemsOffice NetworksEdge ComputingTelecom RoomsAV Systems
Certifications
CE CertifiedRoHS Compliant
Contact us for pricing, specifications, or OEM requirements.
