Wall Mount Cabinets

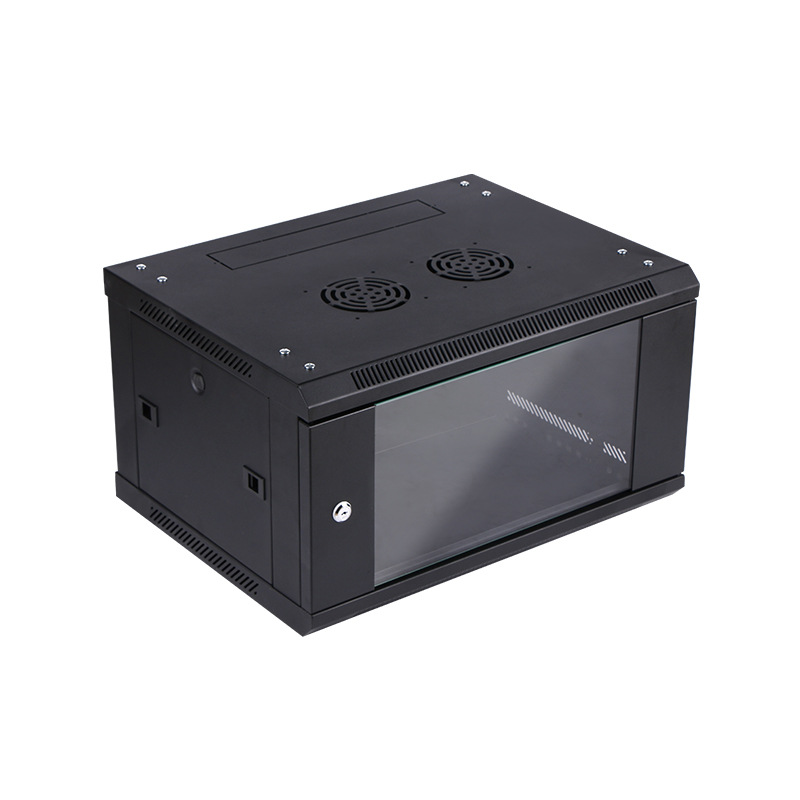

6U Wall Mount Cabinet
19-inch wall-mount network cabinet with tempered glass front door, ideal for small network and surveillance installations.
Available Depths
450mm
Shallow Type
Model: FS-6406
600mm
Standard Type
Model: FS-6606
Specifications
Rack Units:6U
Standard:19-inch
Width:600mm
Depth:450mm / 600mm
Height:330mm
Load Capacity:60KG
Material:SPCC Cold Rolled Steel
Body Thickness:1.0mm
Upright Thickness:1.2mm
Front Door:4mm Tempered Glass
Surface Finish:Powder Coating
Protection:IP20
Color Options:Black / Gray
Installation:Wall Mount
Dimensions & Weight
| Model | Dimensions (W×D×H) | Packing Size | Weight |
|---|---|---|---|
| FS-6406 | 600 × 450 × 330 mm | 620 × 470 × 350 mm | 13 KG |
| FS-6606 | 600 × 600 × 330 mm | 620 × 620 × 350 mm | 17 KG |
Key Features
- SPCC cold rolled steel, upright & wall plate 1.2mm, body 1.0mm

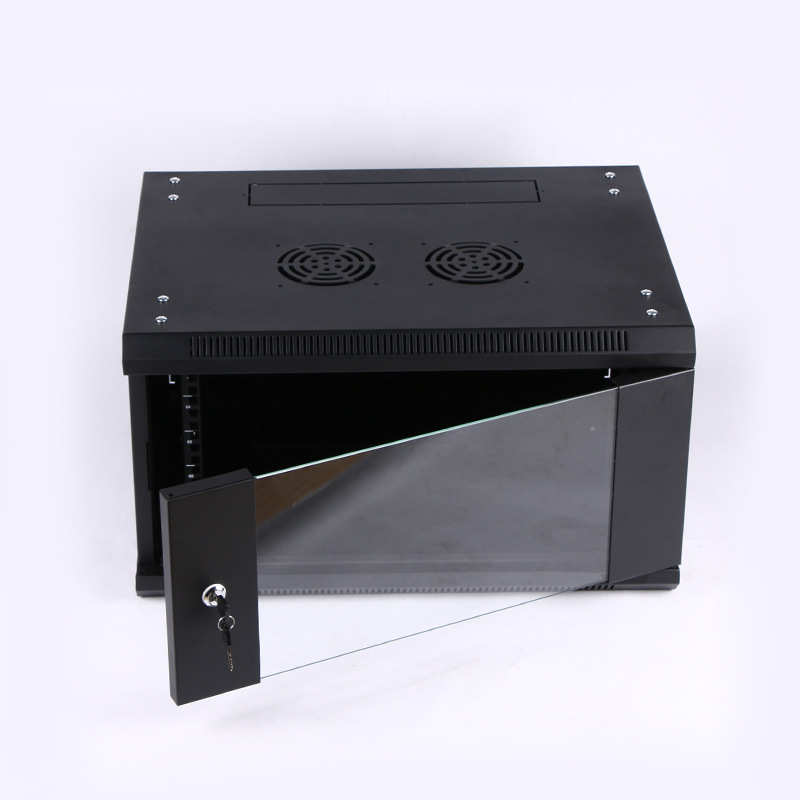

- 4mm tempered glass front door with lock & keys

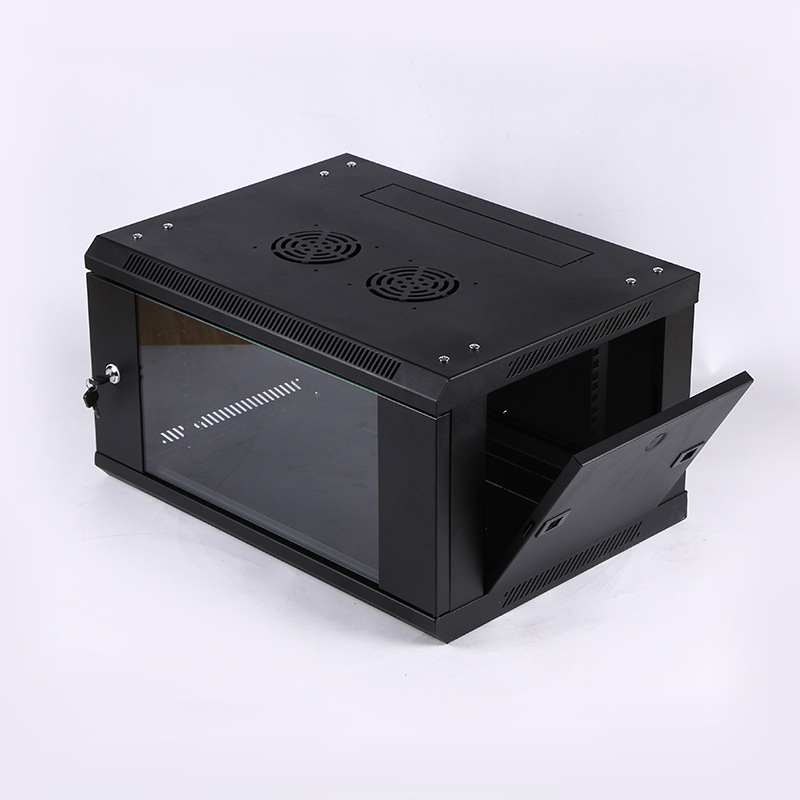

- Removable side panels with quick-release latches
- Dual top-mounted cooling fans (optional)
- Adjustable front & rear mounting rails with U-number markings
- Integrated wall mounting plate for easy installation
- Top & bottom cable entry with cover plate
- 60KG static load capacity
Standard Accessories
4 × Upright posts (1.2mm)
20 × M6×12 screw & nut sets
4 × Horizontal mounting brackets
1 × Wall mounting plate
Optional Accessories
Cooling fan kit
Fixed shelf / vented tray
1U PDU power strip
Side panel locks
Typical Applications
Office NetworksRetail SurveillanceClassroom AV SystemsHome Network CabinetsSecurity MonitoringEdge Computing
Certifications
CE CertifiedRoHS Compliant
Contact us for pricing, specifications, or OEM requirements.
